SMD Audio Multi Meter/Hand Held Amplifier Dyno - Real time wattage tester

SMD Audio Multi Meter/Hand Held Amplifier Dyno - Real time wattage tester

Q: Is this the same the regular dd1? If not what the special part of this ?

It is not a distortion detector. It calculates the watts the amplifier is putting out by running the positive speaker lead through the center and connecting the red and black leads to the positive and negative battery connection at the amplifier. It also has a few other functions. Steve Meade has some videos on Youtube about it.

Q: Hi guys can i test on this device my tweeter and mid range speaker or its only made for subwoofer test? if yes how i run test please explain.

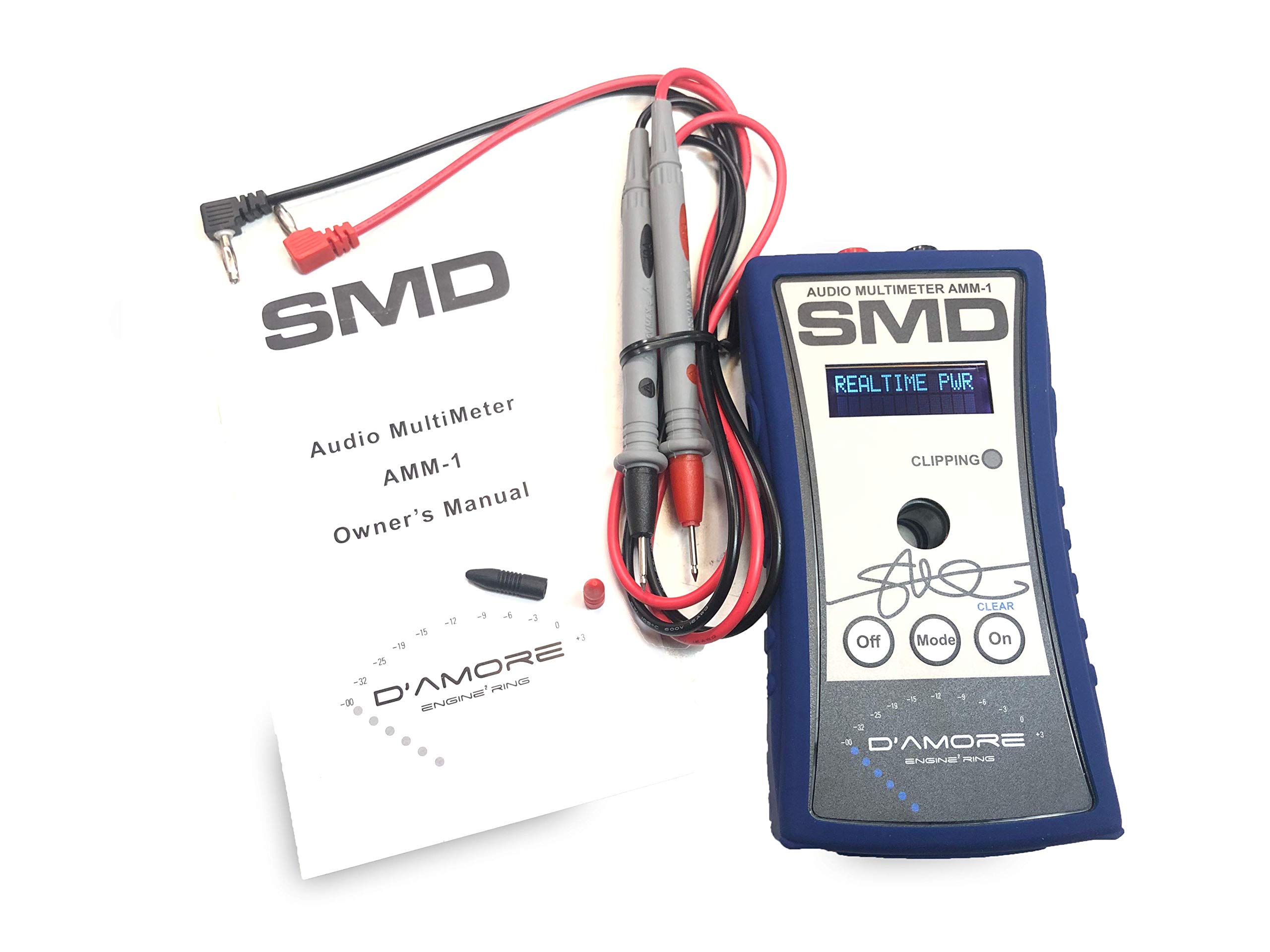

The red and black leads are positioned at the point where the speaker leads come out of the amplifier. red on positive lead and black on negative lead measuring voltage. The positive lead then runs through the circle in the meter to measure current running through the wire. It needs these two measurements to calculate wattage. So you could also measure from an external passive crossover going to a tweeter or midrange. You just have to have access to the positive and negative speaker lead.

Q: Can this work for home speakers

Yes. There is a lot of good videos on Youtube on the subject. Steve Meade himself does some testing this meter.

Q: So to set the gains i would need the dd1 and not this??

it shows cliping if u want to set gains

Product ID: 15209183

Secure Transaction

Details

Brand
MSD
Power Source
Battery
Style
Handheld
Color
Black white
Min. Operating Voltage
1E+2 Volts

⚡15,000W real-time wattage

📊Measures 10-20,000 Hz frequency

🔋Battery-powered handheld

Frequently Bought Together

SMD Audio Multi Meter/Hand Held Amplifier Dyno - Real time wattage tester

Sanuke 10pcs 1/0 AWG-3/8 Battery Lugs, UL Listed Heavy Duty Wire Lugs Ring Terminal 0 Guage terminals Battery Cable Ends/Terminal Connectors with 3:1 Heat Shrink Tubing

SMD Crossover Calibrator CC-1

Description

🎛️ Tune like a pro, measure like a boss!

SMART AUTO SHUTDOWN - Saves battery life with an 8-10 minute auto-off timer, so you’re always ready when it counts.
PRECISION POWER MASTERY - Accurately measures true amplifier power up to 15,000 Watts for flawless audio tuning.
FREQUENCY RANGE FOR PROS - Covers 10 Hz to 20 kHz frequency spectrum, perfect for tuning subwoofers and speaker enclosures.
ALL IN ONE AUDIO DIAGNOSTICS - Combines DC/AC voltage, current, impedance, and power factor readings in one sleek handheld device.
INSTANT BATTERY HEALTH CHECK - Built-in battery self-test ensures your tool is powered up and reliable every time you use it.

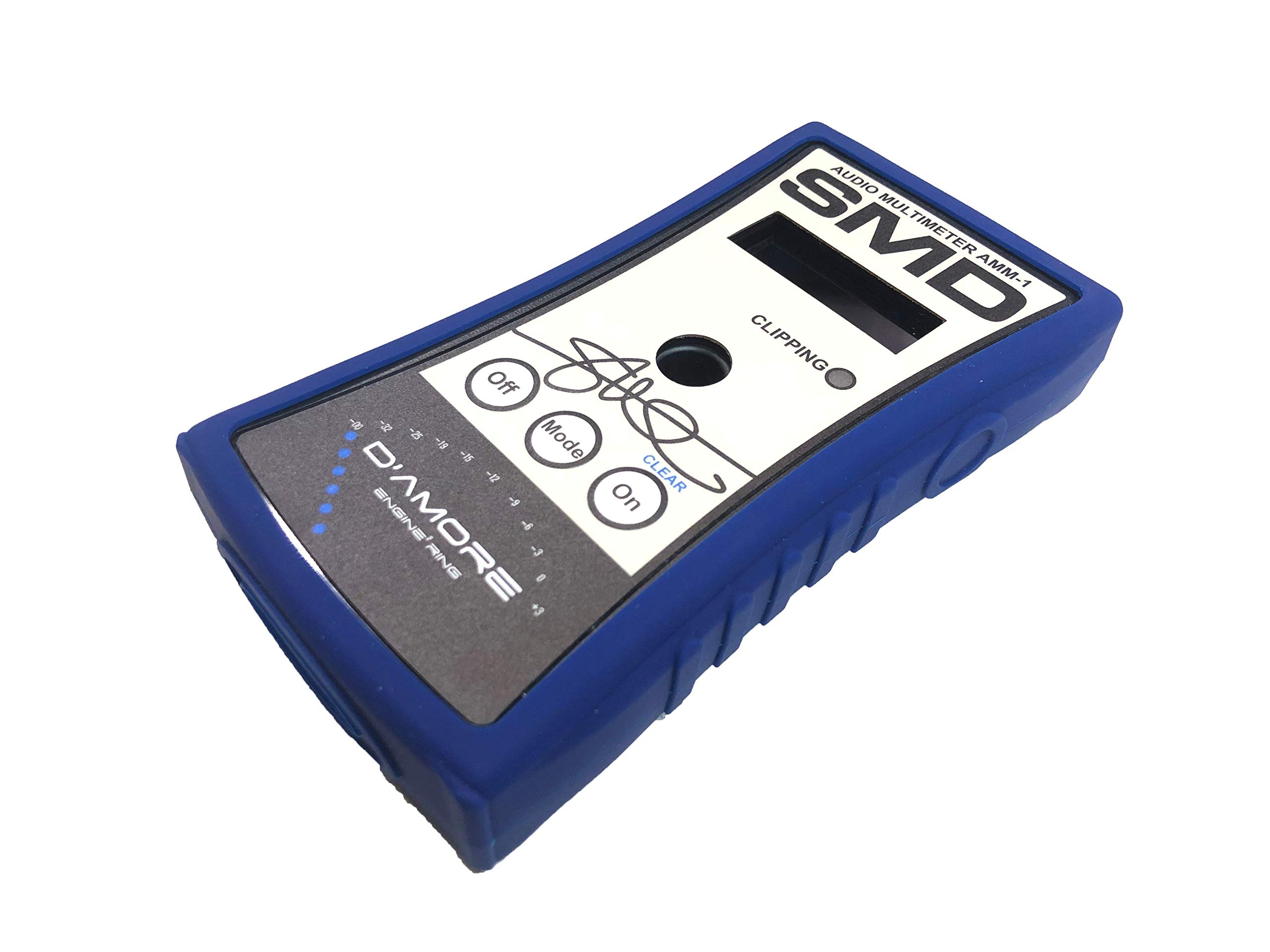

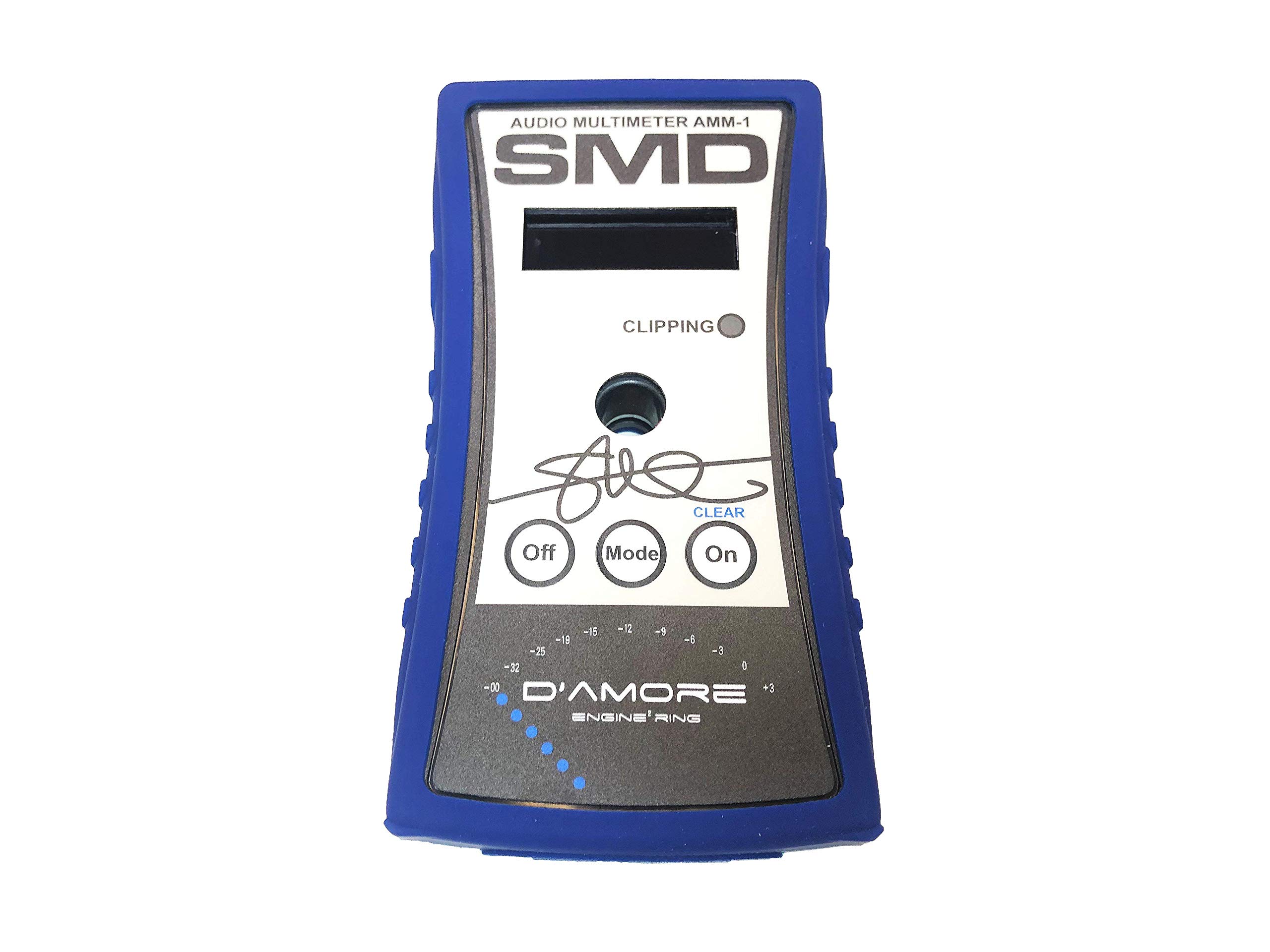

The SMD Audio Multi Meter/Hand Held Amplifier Dyno is a professional-grade, battery-powered handheld device designed to measure true amplifier power output up to 15,000 Watts, along with DC/AC voltage, current, impedance, power factor, and frequency from 10 Hz to 20 kHz. Ideal for audio engineers and enthusiasts, it enables precise tuning of subwoofers and speaker enclosures with smart features like auto-shutdown and battery health diagnostics.

Specifications

Brand	MSD
Power Source	Battery Powered
Style	Handheld
Color	Black, white
Min. Operating Voltage	1E+2 Volts (DC)
Measurement Type	Ammeter, Voltmeter
UPC	702082590874
Manufacturer	SMD / D'Amore Engineering
Part Number	CECOMINOD062375
Item Weight	14.4 ounces
Package Dimensions	7.91 x 5.94 x 2.28 inches
Item model number	SMD-AMM-1-2
Is Discontinued By Manufacturer	No
Material	plastic
Item Package Quantity	1
Batteries Included?	No
Batteries Required?	No

Have a Question? See What Others Asked

Is this the same the regular dd1? If not what the special part of this ?

Hi guys can i test on this device my tweeter and mid range speaker or its only made for subwoofer test? if yes how i run test please explain.

Can this work for home speakers

So to set the gains i would need the dd1 and not this??

Reviews

R**.

In need for a custom 312

Gotta have this to go with my dd1 for a bass Make over got 3 12 xtrpro Orion 124d in a sealed box 2 two Wolfram 2400.1 strapped Now I am getting 3 Audiopipe TXX-BDC4-12 3 12 ported box and taramp 12000.1 amp.

2.06.2020

D**N

highly recommend to any one a must have in car audio!!

absolutely awesome!! used the amp dyno on my American bass VFL 175.1 was awesome to find out what my ohm rise was and at what frequency in real time!! had the installer at the one local shop playing with this for about an hour straight!! all around awesome offers so much and a awesome price highly recommend to any any one

9.11.2014

I**.

Fast shipping!!!

I haven't tested it yet, but it looks and feels top quality, SMD shipped it really fast and was delivered faster than expected.

15.05.2020

L**E

Easy to use

Awesome product a must have for any car audio lovers

19.11.2021

R**P

Five Stars

Awesome product! Test your own amps and see how they actually perform.

6.02.2018

W**L

Five Stars

Great tool

25.12.2016

A**R

Five Stars

Great product

25.07.2016
